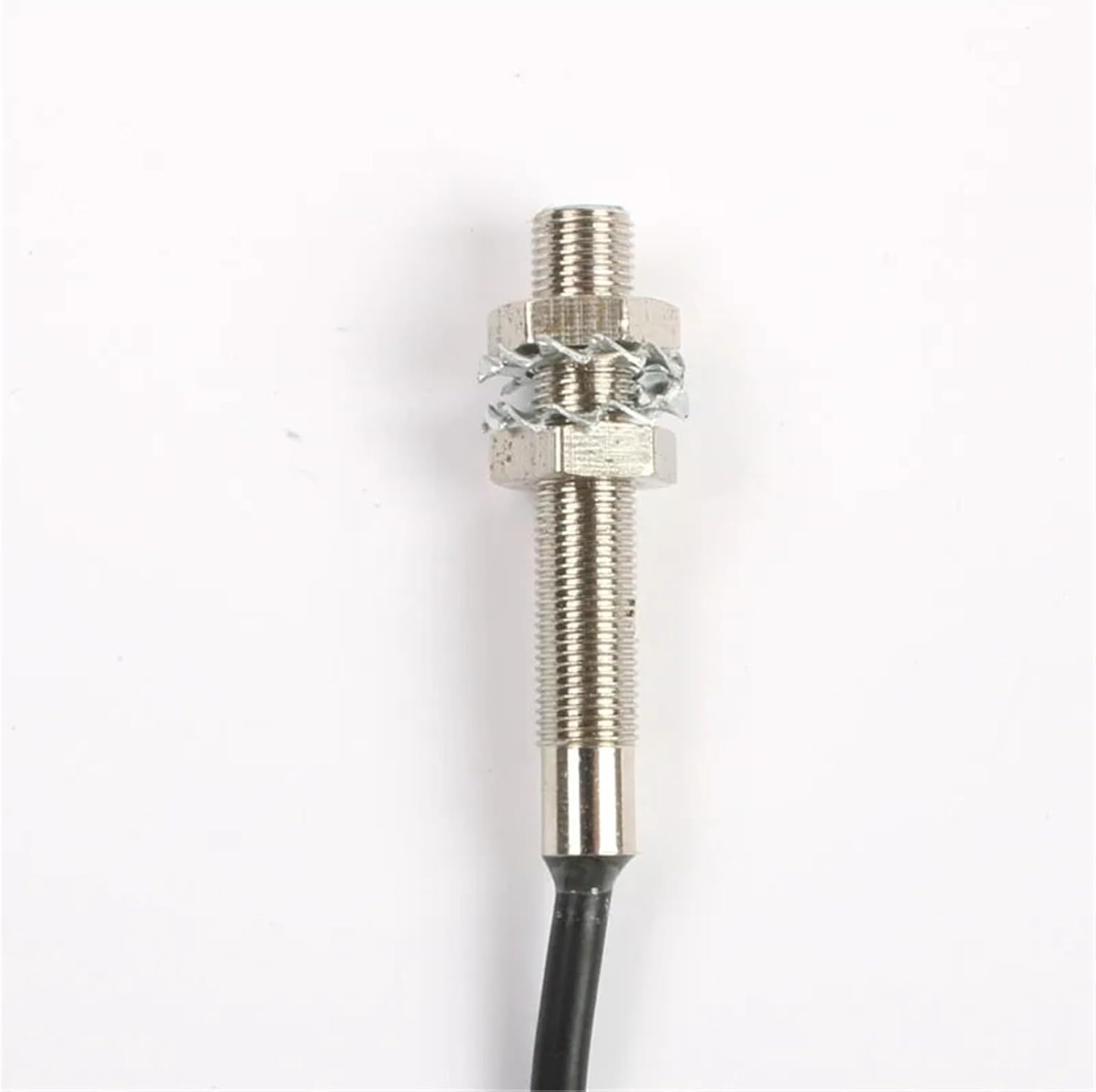

1pc Inductive Proximity Sensor,LJ5A3-1-Z/BX DC6-36V 3Wire NO NPN 200mA Proximity Switch Sensor Switch(LJ5A3-1-Z EX)

Photoelectric SensorsSizeInstallation methodShieldedModel typeNPNNOLJ5A3-1-Z/BXNCLJ5A3-1-Z/AXNO+NCPNPNOLJ5A3-1-Z/BYNOLJ5A3-1-Z/AYNO+NCNOLJ5A3-1-Z/EXNCAC typeNONCNO+NCDetection distance1mm ± 10%Set distance0-0.7mmLag distanceLess than 10% of detection distanceDetect objectMagnetic metal (the detection distance is reduced when the metal is non-magnetic)Standard detection objectIron 5*5*1mmResponse frequency:0.5kHz AC:25Hzvoltage type:DC12-24V(6-36V) Pulsation (P-P) below 10%,AC type:AC110-220V(36-250V)50/60HzWithstand voltageAC1000V 50/60Hz 1min between charging part and caseInfluence of voltageWithin ±15% of the rated power supply voltage range, within ±10% of the detection distance at the rated power supply voltage valueCurrent consumptionN.P type: 13mA or less, D type: 0.8mA or less, A type: 1.7mA or lessControl outputN.P type: 300mA or less, D type: 200mA or less, A type: 400mA or lessCircuit protectionN.P.D type: reverse connection protection, surge absorption, load short-circuit protection, A type: surge absorptionEnvironmental temperature and humidityDuring operation and storage: -30-+65each(No icing, no frost), during operation and storage: 35-95%RH eachThe influence of temperatureTemperature range -30-+65, at +23, within ±15% of detection distanceTemperature range of -25- + 60, + when 23, ± 10% or less from the detectorInsulation resistanceAbove 50M (DC500 megohmmeter) between the charging part and the shellMaterialShell: nickel-plated brass Detection surface: ABS==========Hign-concerned Chemical : NoneMaterial : AlloySwitch Type : Proximity SwitchModel Number : LJ5A3-1-Z/BX LJ5A3-1-Z/AX LJ5A3-1-Z/BY LJ5A3-1-Z/AY LJ5A3-1-Z/EX
